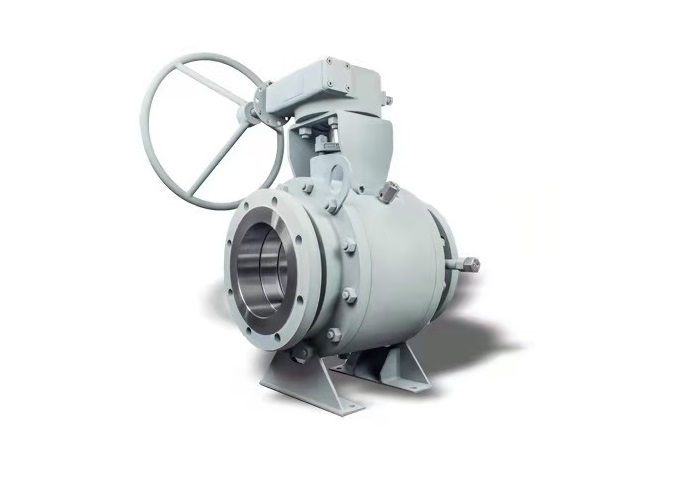

Mounted ball valve adopts two or three pieces split side mounting body design, in line with API6D standard.Working temperature - 46 ~ 200 ℃, especially suitable for large diameter pipes, high pressure fluid control, this series of fixed ball valve with double block and discharge function.This series of valves according to API 607 and API 6FA fire test are approved by lowe's certification.

Technical parameters

Size: 2 "~ 60" (DN50~ DN1500)

Pressure CLASS: ASME CLASS 150~2500(PN16~PN420)

Main materials: carbon steel, stainless steel, alloy steel and duplex steel, nickel base alloy, etc

Connection: flange end, butt welding end, HUB end, etc

Operation mode: manual, pneumatic, electric and hydraulic
